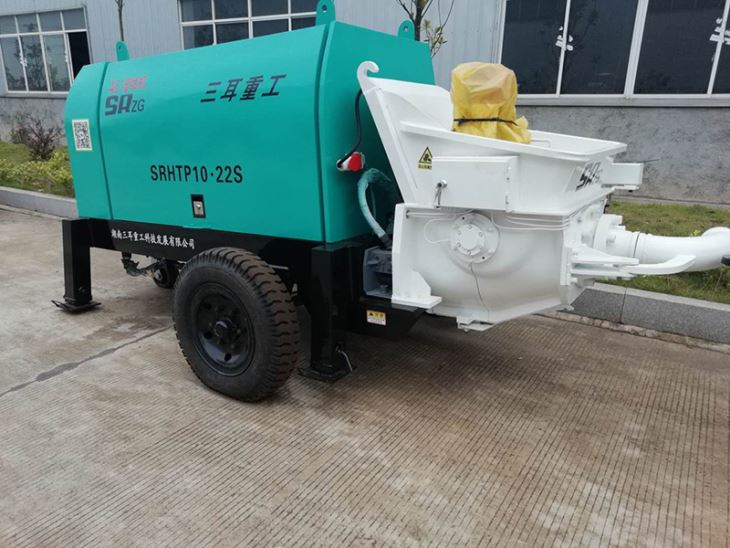

Mine Shotcrete Tshuab
Saner A5 yog qhov ua tau zoo, compact trailer qhob twj tso kua mis uas tau tsav ncaj qha los ntawm lub zog nyob hauv tsev, tshwj xeeb yog tsim los rau cov vaj tsev nyob deb nroog thiab cov phiaj xwm me me.
Khoom nta
Kawasaki lub ntsiab twj tso kua mis muab 26MPa system siab, kom ntseeg tau tias du 16mm crushed pob zeb siv ntawm qhov qis 45KW kos.
Φ160mm bore thiab 1000mm ntev -stroke lub tog raj kheej slash startup tam sim no, adapting rau lub load peev xwm ntawm 380V nyob deb nroog daim phiaj.
Precision- hauv av S- valve blocks slurry bypass ntawm 10Mpa siab siab, ua kom muaj kev ua haujlwm siab tshaj plaws hauv lub sijhawm 25m ntsug nqa.
3600kg compact chassis nrog siab - vibration ncej thiab 35m wireless tej thaj chaw deb tso cai yooj yim ib leeg - neeg teb xov tooj tswj nyob rau hauv nqaim struts.
Khoom Parameters
| KHOOM PLIG | ||||||||
| TECHNICAL PARAMETERS | Qauv: SRHTP25-10-45S / A6 | |||||||
| Dav hlau hom | Ob chav dav hlau | |||||||
| Max theoretic tso zis | 25m³/h | |||||||
| Max theoretic twj tso kua mis siab | 10 Mpa | |||||||
| Hydraulic system | Ob chav twj tso kua mis & ob chav Circuit Court qhib | |||||||
| Main roj twj tso kua mis | 112ml / r (kawasaki) | |||||||
| Hydraulic system siab | 26 MPa | |||||||
| Fais fab mov | Hluav taws xob lub cev muaj zog | |||||||
| Qhov hluav taws xob | 380V | |||||||
| Lub cav fais fab | 45 KW TSI | |||||||
| Distribution valve hom | S lub cev valve | |||||||
| conveying lub tog raj kheej bore / stroke | Φ160/1000 hli | |||||||
| Accelerator twj tso kua mis hloov & siab | 270 l/h × Mpa | |||||||
| Max aggregate loj | Tsawg dua los yog sib npaug li 16 hli | |||||||
| Mix Hopper Volume | 300-500L | |||||||
| Pub qhov siab | 1350 hli | |||||||
| Max theoretic xa ntsug nrug deb | 25m | |||||||
| Max theoretic xa kab rov tav nrug | 35m | |||||||
| Kev ua haujlwm style | wired lossis wireless chaw taws teeb tswj | |||||||
| Radiator cua txias hom | Cua txias system | |||||||
| Hydraulic twj tso kua mis hom | Ram twj | |||||||
| Qhov Loj (L * W * H) | 4700 × 1850 × 1900mm | |||||||
| Tag nrho qhov hnyav | 3 600kg | |||||||
Cov ntawv pov thawj
Kawasaki OEM Certified: Lub twj tso kua mis tseem muaj kev pom zoo rau cov chaw tsim khoom rau sab saum toj -tier volumetric efficiency thoob plaws hauv nws lub neej ua haujlwm.
TS EN 60204-1 Kev Ua Haujlwm Hluav Taws Xob: Lub 45KW tswj qhov ua tau raws li cov qauv kev siv tshuab thoob ntiaj teb, ua kom tsis muaj kev pheej hmoo ntawm cov kab hluav taws xob tsis muaj zog.
10Mpa Fatigue Type- Pom zoo: High-hardness alloy S-valve hla lub siab ntsuas siab kom lav xoom tawg nyob rau hauv siab - zaus cuam tshuam.
Tuam txhab Services
Technical Archiving
Peb tsim cov ntaub ntawv thev naus laus zis rau txhua chav tsev, ntsuas qhov ntsuas ntsuas thiab cov lej sib txuas rau kev saib xyuas tas mus li.
Logistics Tracking
Peb muab sijhawm tiag tiag - hloov tshiab rau kev thauj khoom hiav txwv thiab kev lis kev cai tseem ceeb, txhawb nqa los ntawm kev txiav txim siab rau cov khoom hnyav - nqa khoom.
Kev them nyiaj yug chaw taws teeb
Cov kws tshaj lij tau teb hauv 2 teev los muab 1-on-1 calibration calibration guidance ntawm peb HD video diagnostic system.
Fast Spare Xeem
Txawv teb chaws warehouses Tshuag txiav daim hlau, spectacle phaj, thiab pistons; qhov chaw ua tsis tau raws li warranty nkoj ntawm kev nthuav qhia hauv 48 teev.
FAQ
Q1: Cov kab hluav taws xob nyob deb nroog feem ntau tsis ruaj khov; Qhov no 45KW lub cev muaj zog puas yuav ua rau muaj hluav taws xob tsis tu ncua lossis mus ncig hauv zos tawg?
A:Tsis yog. Lub A5 yog qhov ua kom zoo rau cov kab sib chaws nyob deb nroog, siv lub qhov me me ua ke nrog cov hlab ntsha ntev dua los txiav cov qhov pib pib tam sim no, khiav zoo ntawm cov kab 380V.
Q2: Lub tshuab no puas tuaj yeem ua pob zeb ua pob zeb? Dab tsi yog qhov siab tshaj plaws aggregate loj?
A:Yog lawm. Lub dual -lub tog raj kheej hydraulic system ua ke nrog lub siab - siab S-valve yooj yim xa cov pob zeb crushed mus txog 16 hli yam tsis muaj kev thaiv.
Q3: Lub warranty ntev npaum li cas? Yuav ua li cas yog tias lub twj tso kua mis hydraulic tsis ua haujlwm?
A:Lub warranty yog 1 xyoo los ntawm kev xa khoom. Yog tias cov khoom tseem ceeb xws li Kawasaki lub twj tso kua mis tsis ua haujlwm vim muaj teeb meem zoo (tsis suav nrog cov khoom hnav), peb xa cov khoom lag luam - hloov tshiab tsis raug nqi.
Q4: Dab tsi yog qhov architecture ntawm qhov chaw tswj kev ua haujlwm, thiab dab tsi yog cov neeg ua haujlwm tshwj xeeb rau kev ua haujlwm?
A:Lub tshuab yog nruab nrog 35-meter industrial-qib wireless chaw taws teeb tswj qhov system. Qhov no ua rau ib tus neeg teb xov tooj kom meej meej tswj cov twj tso kua mis ncaj qha ntawm qhov chaw pouring, tshem tawm qhov xav tau rau txoj hlua hlau pendants.
